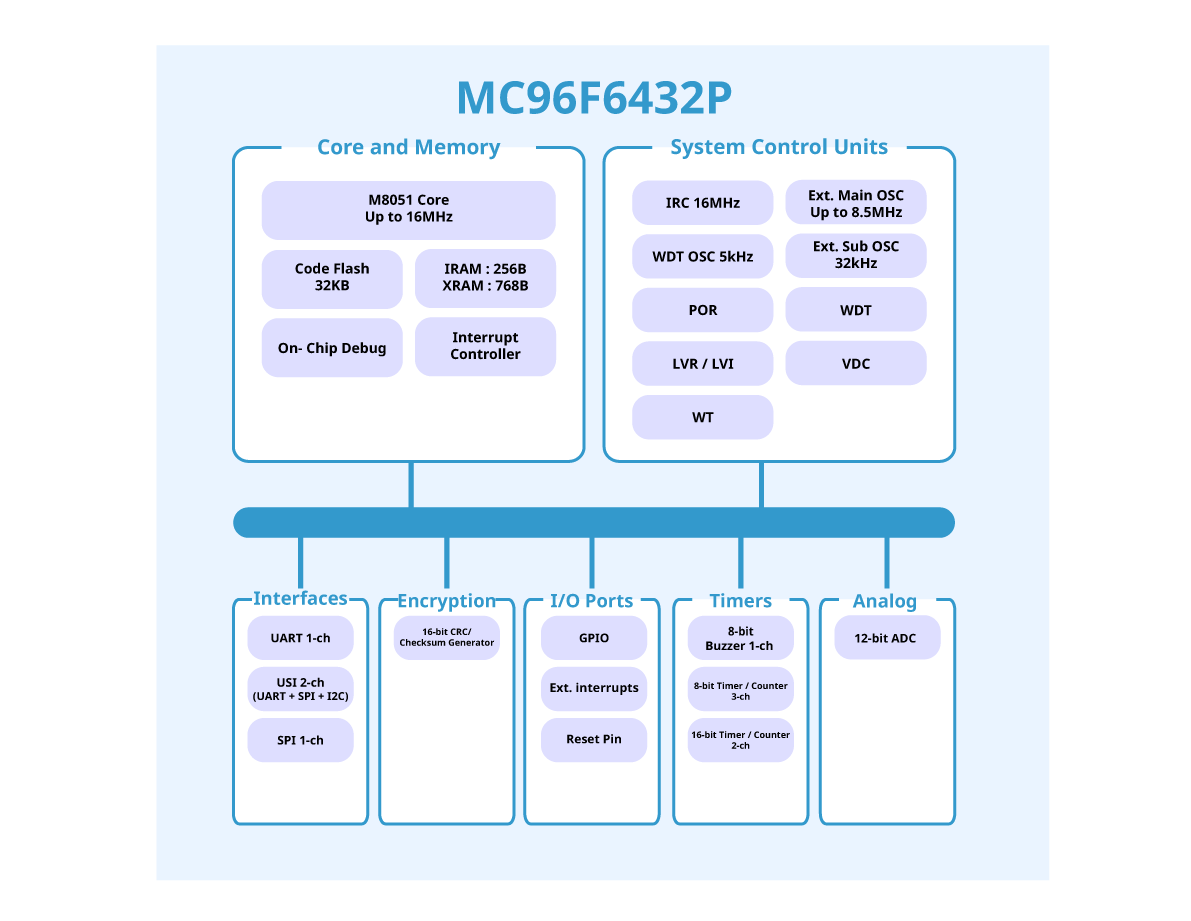

The MC96F6432P is advanced CMOS 8-bit microcontroller with FLASH. This integrates the following features : 32K bytes of FLASH, 1K bytes of SRAM, General purpose I/O, 8/16-bit Timer, Watchdog timer, POR and LVI, LVR, on-chip oscillator 12-bit A/D converter, 8/10-bit PWM output and clock circuitry. In Addition, Its low voltage operating range from 1.8~5.5V and low current consumption characteristics will be helpful in various battery operation applications.

Product Spec

Availability	Mass Production
Core	M8051
Op. Freq. (MHz)	16
Flash (Kbytes)	32
RAM (Kbytes)	1
E2P (Bytes)
Pin Count	32
Max I/O Pins	30
Timer (8-bit)	3
Timer (16-bit)	2
Watch Dog Timer	1
PWM (8-bit)	1
PWM (10-bit)
PWM (16-bit)	2
3-phase PWM (10-bit)	1
3-phase PWM (16-bit)
ADC (bit)	12-bit
ADC (12-bit)(Unit)	1
ADC (ch)	12
ADC Speed (ksps)	50
Number of OP Amp.
IR Learning Op. AMP	N
Number of PGA
Number of Comparator
USART (ch)
UART (ch)	1
SPI (ch)
I2C (ch)
I2S (ch)
USI	2
SIO (ch)
LCD Driver
LED Driver / High current port
IR Driver TR	N
HSI Freq. (MHz)	16
HSI Err. (±%) 85	2
HSI Err. (±%) 105	3
Sub. X-tal Support	Y
Ext. X-tal Support	Y
Touch Key (ch)
Key Scan : M-Key
Key Scan : T-Key
ISP	Y
CRC	Y
Carrier Generator
Min Op Voltage (V)	1.8
Max Op Voltage (V)	5.5
Min Op Temp (℃)	-40
Max Op Temp (℃)	105
Remarks	POR,LVR,LVI,WDT
Package	32-LQFP
Package Size (mm)	7x7-0.8
