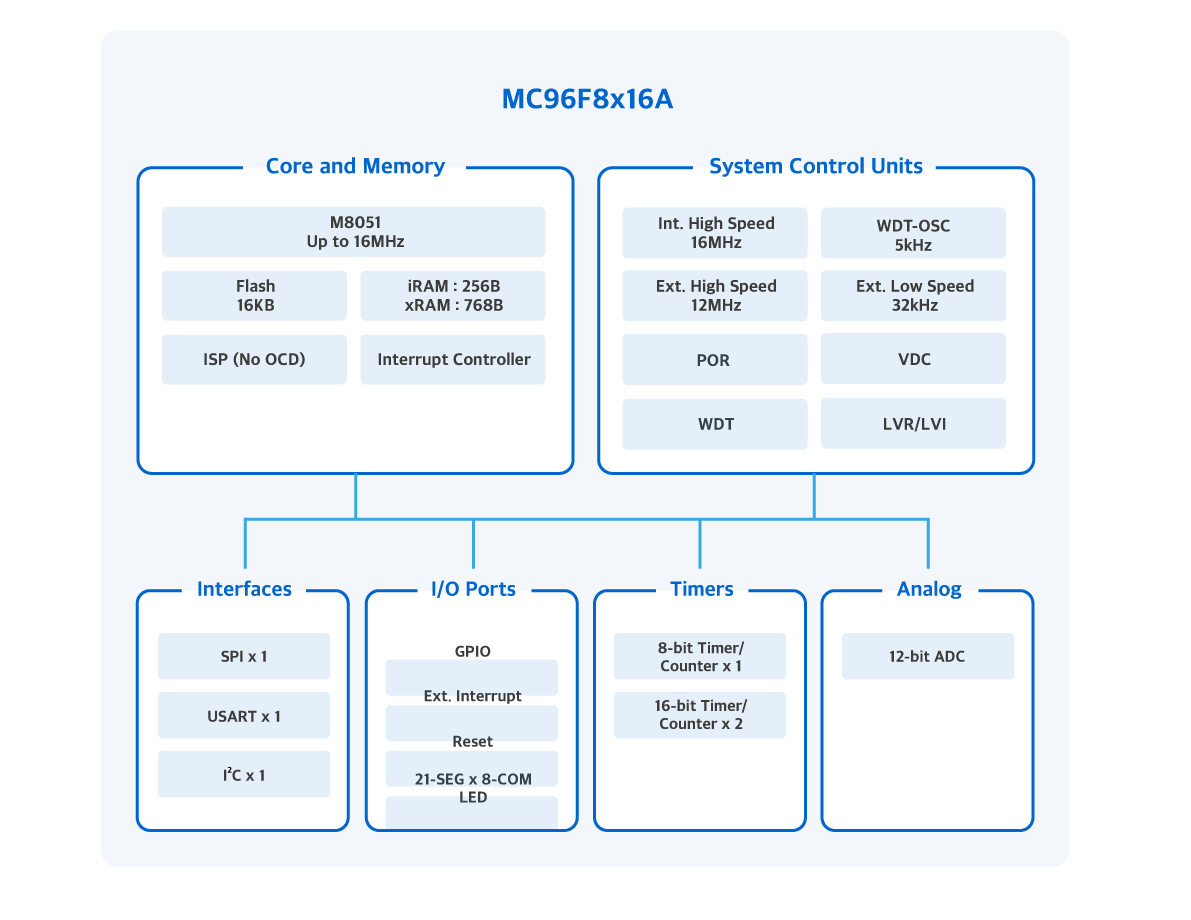

MC96F8216 / MC96F8316 are advanced CMOS 8-bit microcontrollers with 16 Kbytes of Flash. These powerful microcontrollers provide a highly flexible and cost effective solution to many embedded control applications. MC96F8216 / MC96F8316 provide the following standard features: 16 Kbytes of Flash, 256 Bytes of iRAM, 512 Bytes of xRAM, 8/16-bit timer/counter, 12-bit ADC. MC96F8216 / MC96F8316 also support power saving modes to reduce power consumption.

Product Spec

Availability	Mass Production
Core	8051
Op. Freq. (MHz)	16
Flash (Kbytes)	16
RAM (Kbytes)	0.76
E2P (Bytes)	0
Pin Count	20
Max I/O Pins	18
Timer (8-bit)	1
Timer (16-bit)	2
Watch Dog Timer	0
PWM (8-bit)	1
PWM (10-bit)	0
PWM (16-bit)	2
3-phase PWM (10-bit)	0
3-phase PWM (16-bit)	0
ADC (bit)	12-bit
ADC (12-bit)(Unit)	1
ADC (ch)	8
ADC Speed (ksps)	50
Number of OP Amp.	0
IR Learning Op. AMP	N
Number of PGA	0
Number of Comparator	0
USART (ch)	0
UART (ch)	1
SPI (ch)	0
I2C (ch)	1
I2S (ch)	0
USI	0
SIO (ch)	0
LCD Driver	0
LED Driver / High current port	4
IR Driver TR	N
HSI Freq. (MHz)	16
HSI Err. (±%) 85	3.5
HSI Err. (±%) 105	0
Sub. X-tal Support	N
Ext. X-tal Support	Y
Touch Key (ch)	0
Key Scan : M-Key	N
Key Scan : T-Key	N
ISP	Y
CRC	N
Carrier Generator	N
Min Op Voltage (V)	2.2
Max Op Voltage (V)	5.5
Min Op Temp (℃)	-40
Max Op Temp (℃)	85
Remarks	LDO, POR, WDT, WT, BUZZER
Package	20-SOP
Package Size (mm)	300mil
