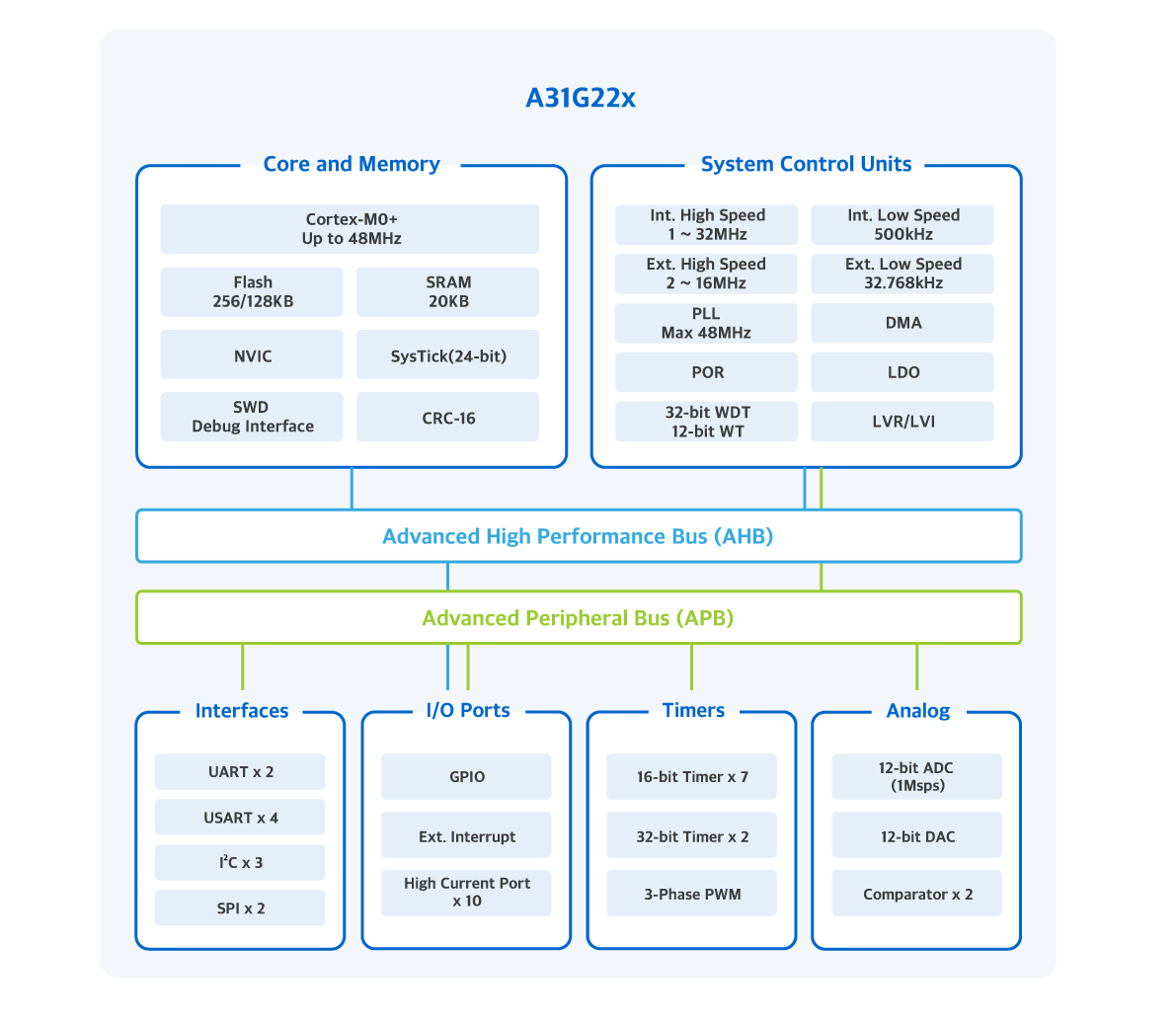

A31G22x is designed for the main controller of various appliances.
In particular, accordance with the tendency that the microcontroller is becoming more complicated and high performance in consumer electronics, ARM high-speed 32-bit Cortex-M0+ Core is used. And for handling more features, this microcontroller has a variety of peripheral devices and large amounts of flash memory. Powerful and various external serial interfaces help to communicate with on-board sensors and devices.

Product Spec

Availability	Mass Production
Core	CM0+
Op. Freq. (MHz)	48
Flash (Kbytes)	128
Data Flash (Kbytes)	32
RAM (Kbytes)	20
Pin Count	48
Max I/O Pins	43
Timer (8-bit)	0
Timer (16-bit)	7
Timer (32-bit)	2
Watch Dog Timer	1
PWM (8-bit)	0
PWM (16-bit)	3
3-phase PWM (16-bit)	0
ADC (bit)	12-bit
ADC (12-bit)(Unit)	1
ADC (ch)	14
ADC Speed (ksps)	1500
DMA (ch)	8
DAC (bit)	12
Number of OP Amp.	0
Number of PGA	0
Number of Comparator	0
USART (ch)	2
UART (ch)	2
SPI (ch)	2
I2C (ch)	2
I2S (ch)	0
USB FS	N
USI	0
LCD Driver	8x26
LED Driver / High current port	10
HSI Freq. (MHz)	32
HSI Err. (±%) 85	1
HSI Err. (±%) 105	1.5
Sub. X-tal Support	Y
Ext. X-tal Support	Y
Touch Key (ch)	0
ISP	Y
CRC	Y
Min Op Voltage (V)	1.8
Max Op Voltage (V)	5.5
Min Op Temp (℃)	-40
Max Op Temp (℃)	85
Remarks	IEC60730, Memory swap, Temp sensor, PLL
Package	48-LQFP
Package Size (mm)	7x7-0.5
